Selected work

Projects

GeoSurvey's own work, and the infrastructure experience behind it.

Featured project

872 Mount Eden Road

Three Kings, Auckland · Land development

One older house on one title became eleven new dwellings on eleven freehold titles, with the access lot and the shared open space held between the eleven owners.

We were the surveyors for all of it. The control, the boundaries and the levels stayed consistent from the first survey to the last certificate, because the same people set them and signed them off.

Topographic surveyThe base the design was drawn on
Scheme planLots, easements and access, through resource consent
Boundary markoutSet out on the ground as the build started
Height and sitingCertified as the buildings went up
As-built drawingsFor the engineering sign-offs
Section 223Survey plan approved by LINZ
Section 224(c)Conditions signed off, titles issued

Boundary and subdivision work Talk about a similar job

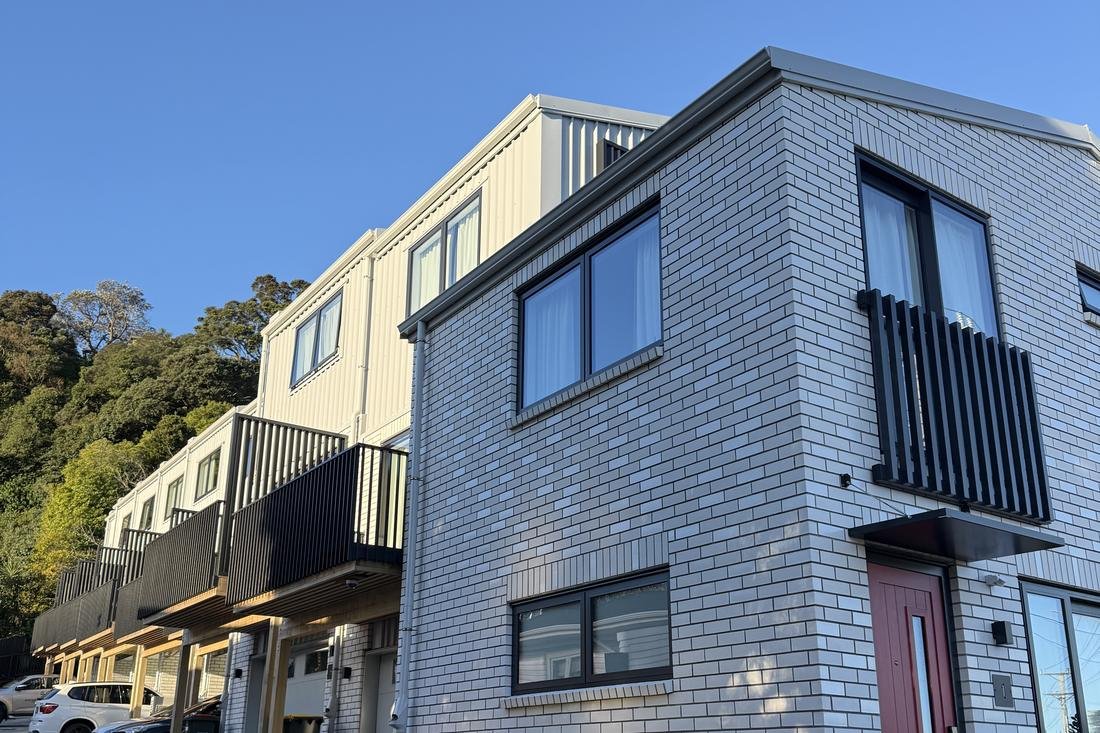

Completed townhouses at 872 Mount Eden Road

After: the completed development

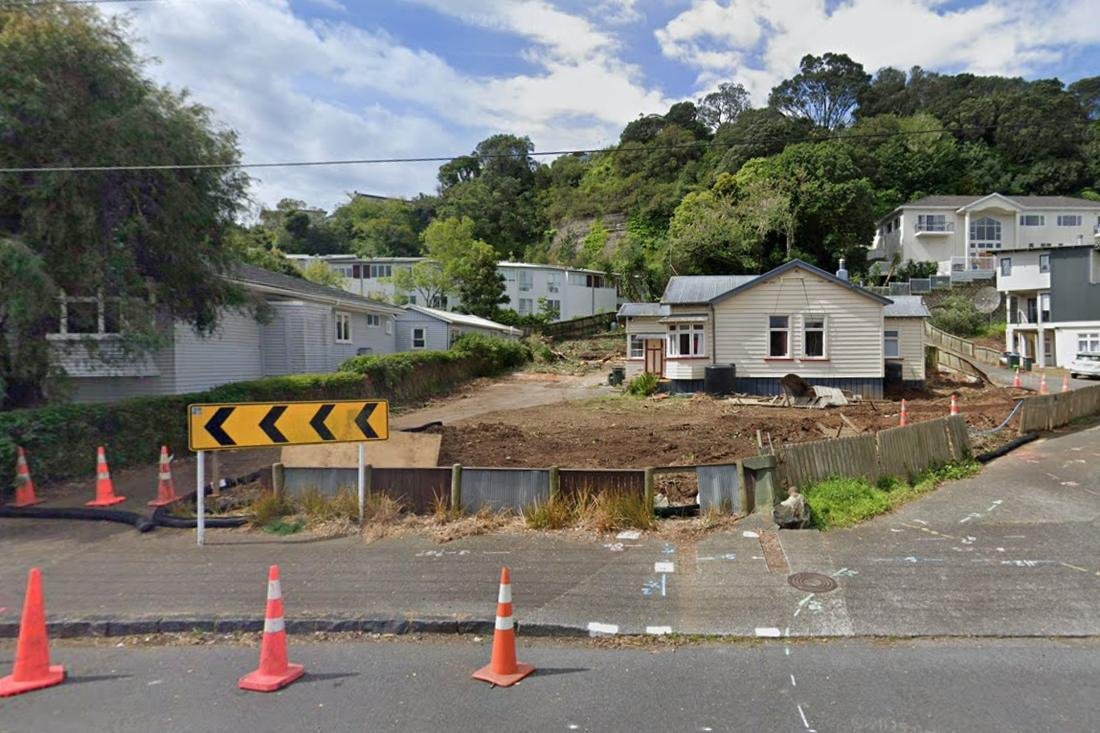

The cleared site at 872 Mount Eden Road before construction

Before: the site as we found it

11New freehold dwellings

Topo to titleOur scope

ApprovedSurvey plan, by LINZ

GeoSurvey

More GeoSurvey projects

Property survey

Auckland

City Rail Link

Property survey delivery for City Rail Link Ltd: defining the land the tunnels and stations now occupy.

Property surveyStratum boundariesRoad stoppingEasements

Real-time monitoring

South Auckland

Papakura to Drury

Survey support, drone flights and real-time deflection monitoring of a retaining wall on the southern motorway upgrade.

Real-time monitoringDrone surveySurvey support

Laser scanning

Auckland CBD

Seascape

Laser scanning and 3D modelling of the Seascape tower as it went up.

Laser scanning3D modellingHigh-rise

Renewables

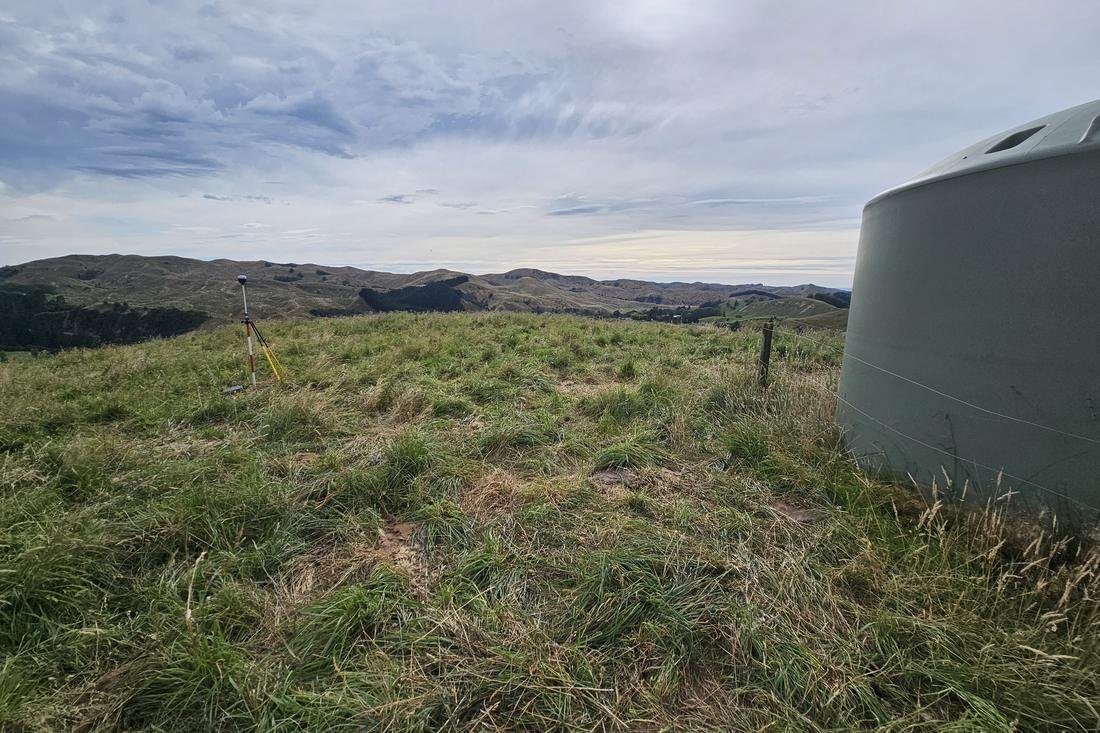

GNSS base station set up on a rural site

Taranaki

Stratford Solar Farm

Survey for the grid connection of a solar farm and battery storage project in Taranaki.

Transmission corridorUtility survey3D modelling

Robotics

Auckland

HP SitePrint, first NZ deployment

One of the first HP SitePrint robotic layout jobs completed in New Zealand.

Robotic layoutSetoutHP SitePrint

Detail

Project notes

City Rail Link
Auckland
Property survey

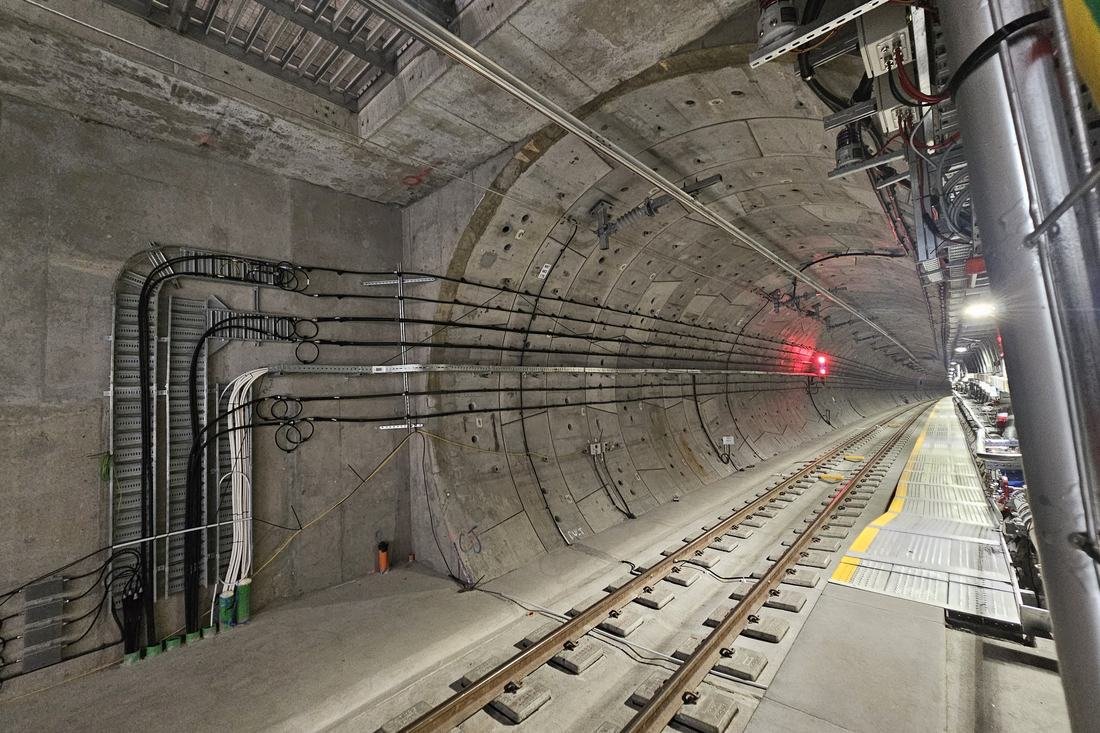

With the railway built, the land it sits in has to be defined properly: the strata the tunnels pass through beneath private property, the protection areas around them, and the road and easement changes the stations brought with them.
Michael leads property survey delivery for City Rail Link Ltd. The work runs zone by zone along the route: surveying the land requirements, preparing the plans behind road stopping and easement applications, and working them through with Auckland Transport, KiwiRail and the utility owners.
It is cadastral surveying at its most exacting. Three-dimensional boundaries under a working city, where every line has to agree with both the as-built tunnel and the title system. Five years earlier Michael ran the construction survey team on the same railway.
Papakura to Drury
South Auckland
Real-time monitoring
Live motorway, staged construction, and a programme that does not wait. We provide survey support and drone capture on the works for the main contractor.

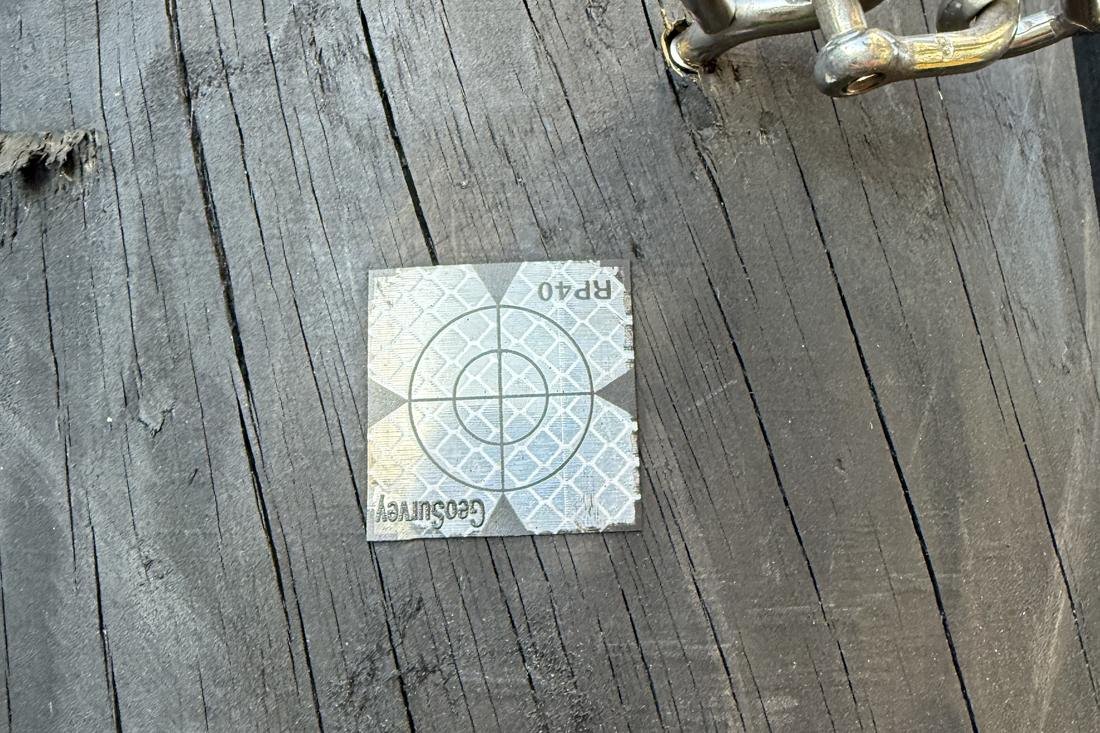

Alongside it we run a real-time deflection monitoring system on a retaining wall: an automated total station observing prisms continuously, trigger levels agreed with the project team, and alerts that go straight to their phones.
Seascape
Auckland CBD
Laser scanning

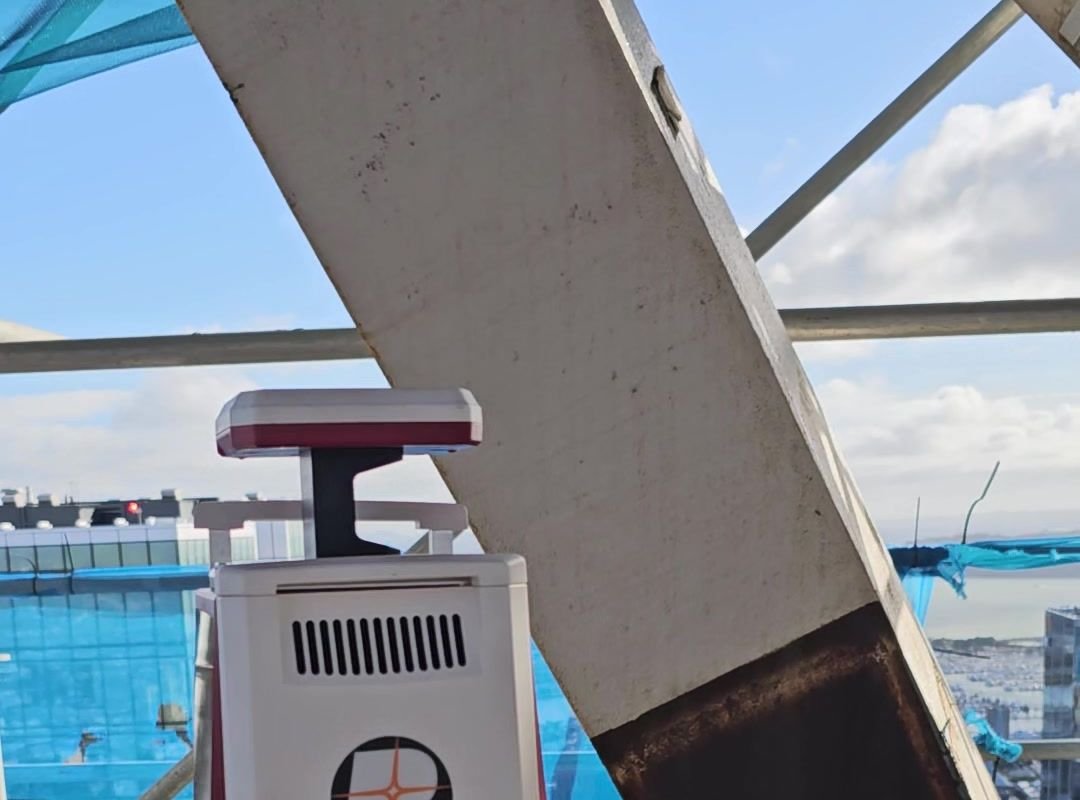

High-specification laser scanners set up on the structure as it rose, capturing the as-built tower for 3D modelling. At that height the real constraints are access, wind, and a working site above and below you.
We worked as part of the survey team for the main contractor, bringing the scanning and modelling capability the scope called for.
Stratford Solar Farm
Taranaki
Renewables
A solar farm, a battery storage site, and the transmission line that connects them to the grid. We are surveying the corridor for the engineers: road intersections captured above and below ground, and the existing poles and pylons around the substation modelled in 3D.
Taranaki is a long way from Takapuna. We go where the work is.

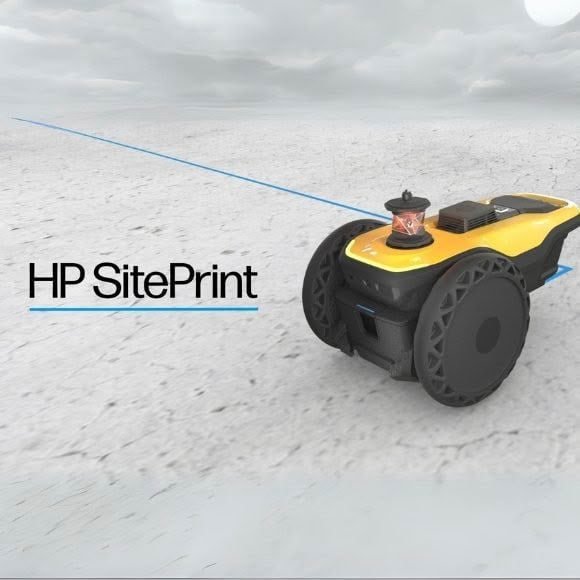

HP SitePrint, first NZ deployment
Auckland
Robotics
A non-square building on a polished concrete slab, where a wrongly placed mark could not be removed. The robot marked the entire layout, and we beat the rain.

Before GeoSurvey

The experience behind the practice

Michael Cutfield's work before GeoSurvey went full time in 2023. These were delivered in his roles with the organisations named, not by GeoSurvey.

City Rail Link, C3 contract
2019 to 2021
National Survey Manager · Downer

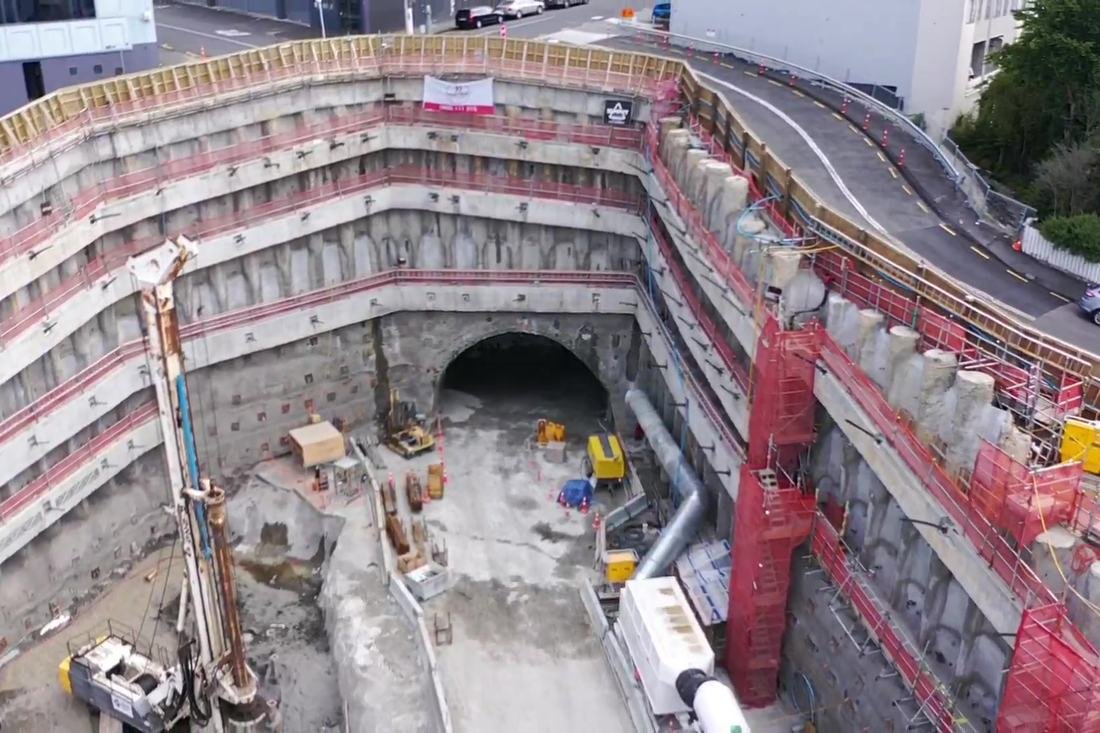

The largest contract on the City Rail Link: stations and twin tunnels under the middle of Auckland. Michael ran a team of twenty surveyors on it. Precision in the confined corridors of the CBD, and guiding the tunnel boring machine beneath them.
Puhoi to Warkworth
2016 to 2019
Survey Manager · Northern Express Group, Fletcher Construction and Acciona
An 18 km motorway delivered as a public private partnership: seven million cubic metres of cut, five and a half million of fill, and two structural steel viaducts. The survey problem was keeping machine guidance right across the fleet, and tracking volumes with drones.
Waterview Connection
2013 to 2016
Survey Manager · Wellconnected Alliance, Fletcher Construction

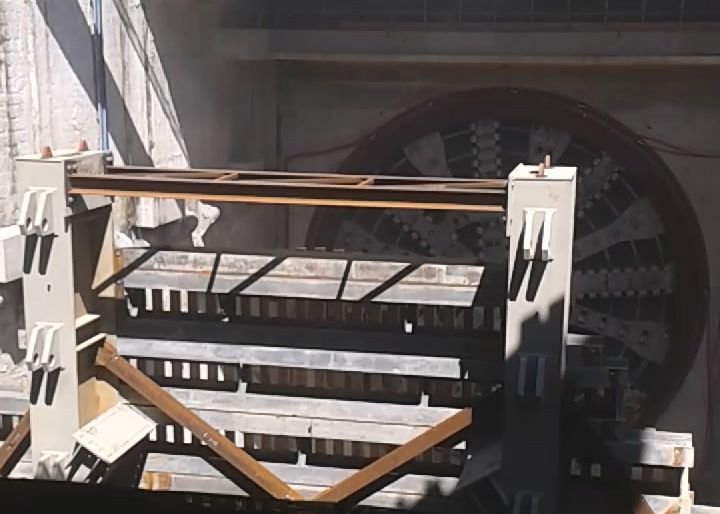

A $1.4 billion motorway tunnel, at the time the biggest roading project in the country. Michael managed up to thirteen surveyors on the surface works around Alice, the tunnel boring machine: real-time monitoring, laser scanning, aerial survey, and the setout and as-builts of the major structures.
Victoria Park Tunnel
2010 to 2011
Surveyor · Victoria Park Alliance, Fletcher Construction
Setout, as-builts and monitoring of the southern approach structures, and the Jacobs Ladder footbridge at the north portal.

Before that: the East London Line and survey work across the City of London, the Tauranga Harbour Link, and the Christchurch infrastructure rebuild. Then two years as General Manager of Survey Worx, New Zealand's largest employer of surveyors, before going full time with GeoSurvey in 2023.
